Model: GHE_ANT_Panel2 Category:

Outdoor Panel Medium 2.4g Antenna

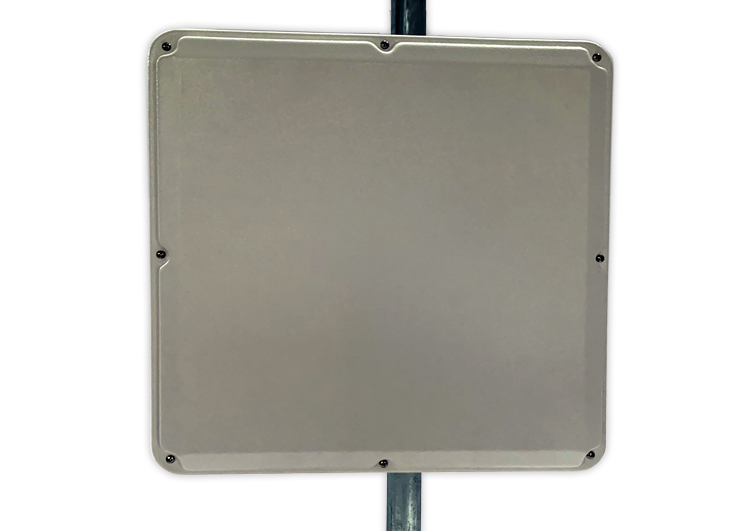

Outdoor rated long range panel antenna – 14 dBi gain.  Best used at base side with it’s wide horizonal beamwidth, it can cover a larger area with more signal than a Yagi.  Universal u-bolt mount, mounts easil to wood pole, or fasten to side of building.


  • Gain  14 dBi
  • Beamwidth: deg. Horz.33 Vert.30
  • Frequency: 2400-2500MHz Weight: 750g
  • Connector: N Female
  • Polarization: Vertical or Horizontal
  • Size: ~ 8″ x 9″ x 2″

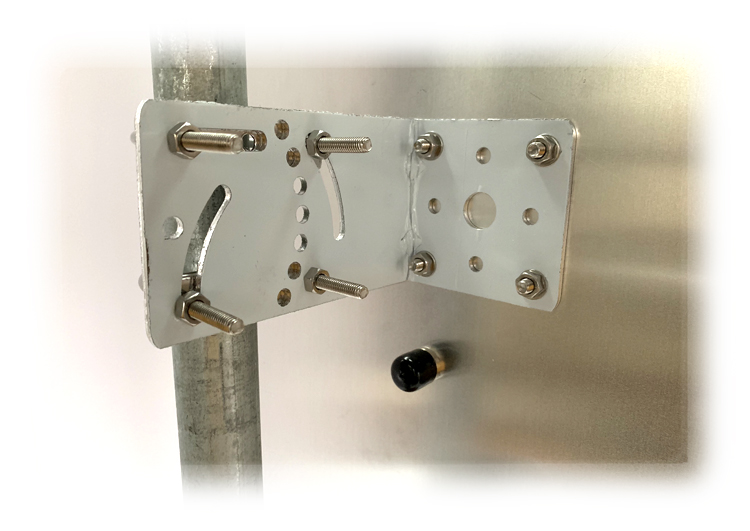

  • Mounting: U-bolt / L Bracket Included

Additional information

Weight 3 lbs
