90/180VDC motor RPU
From $943.00

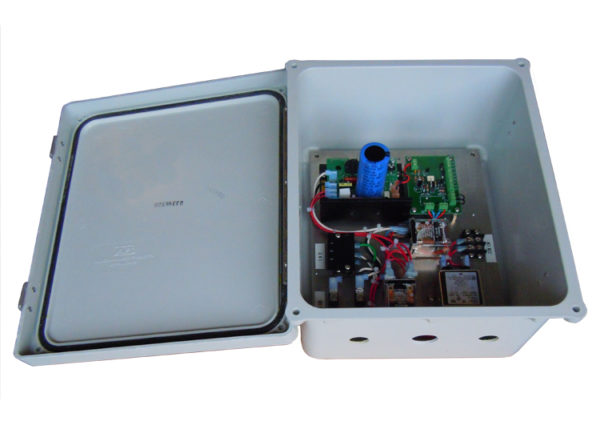

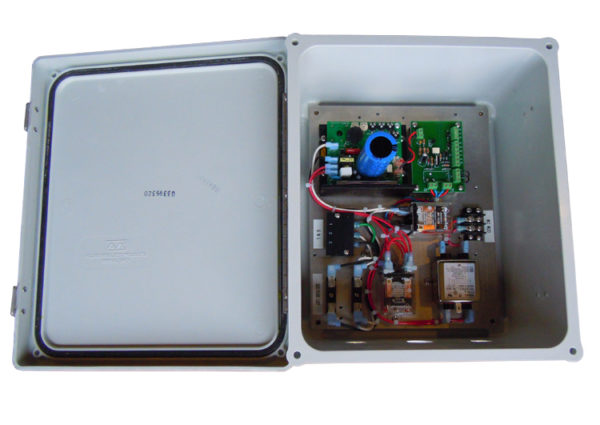

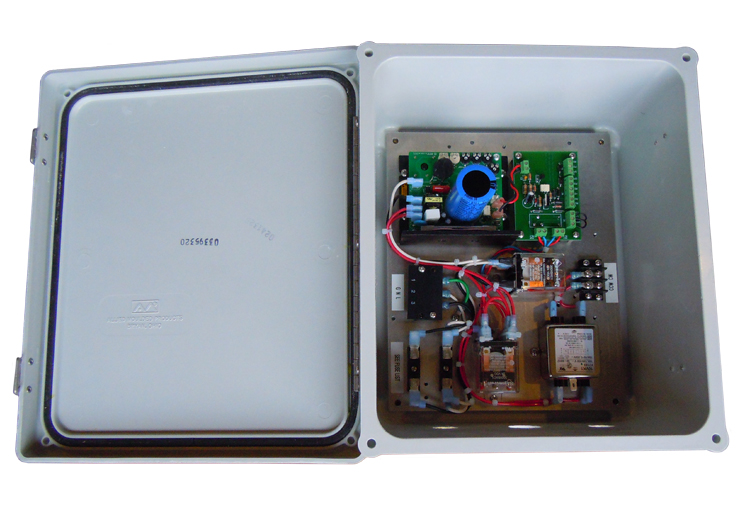

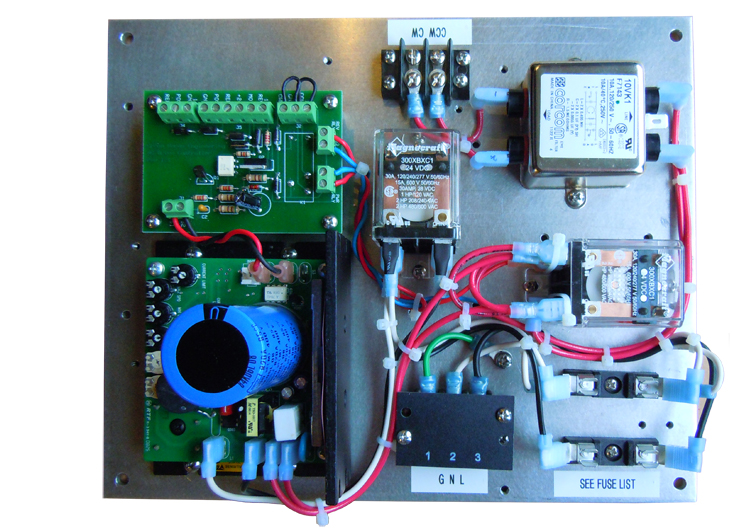

Remote Power Unit for large motor systems up to 2 HP. Provides precision speed/ramp control for rotating towers, large rotating masts or any system that requries 90/180VDC motors. Includes industrial PWM motor controller, interface board, relays connector blocks mounted on a large aluminum plate and installed inside a NEMA rated fiberglass enclosure with three watertight access connectors. Attaches to 115/230 VAC mains, power cable not included. Requires RT-21r or standard RT-21 controller.
Additional information
| Weight | 12 lbs |
|---|---|
| Dimensions | 14 × 14 × 6 in |
| AC Mains | 115 VAC, 230 VAC (no power cable) |
| RPU Enclosure | Outdoor NEMA 4, Delete Enclosure (-$140.00) |
Application
RPU-90/180VDC
This unit provides all the features of an RT-21 controller, but applies them to large motor system up to two HP DC motors. Allows ring or top rotator to be added and used with an RT-21 for counter-rotation systems too. Rugged industrial rated design for robust performance along with all the fail-safe protections utilized with our standard controllers.
This unit requires an RT-21r for the controller, and 4 or 5 conductor of small guage cable to reach between the RT-21r and the RPU. A standard RT-21 also has the capability of interfacing with an RPU.
The RPU requires AC mains and is meant to be installed outdoors with it’s NEMA enclosure. For indoor mounting, or mounting in a larger equipment shelter, the enclosure may be deleted
RT-21 Rotator Controller, Standard
The RT-21 is a universal digital rotator controller that can be user configured for motor voltage and position feedback. Configuration is accomplished by a combination of PCB jumpers and software settings, no soldering or major disassembly is required. This flexibility allows the RT-21 to operate any commercial amateur rotator being built today, and virtually any rotator ever built. In addition, there are configuration settings that allow custom control for commercial and industrial systems.
Why upgrade your controller?
In addition to simply running your rotator or changing to meet your future rotators, the addition of an RT-21 will add modern functionality to your rotator:
- Adds USB and/or RS-232 control
- Adds high resolution digital display
- Adds Point & Shoot hands off operation
- In most cases, improves heading accuracy
- In most cases, adds PWM speed control and gradual start'/stop to your system eliminating tower and rotator stresses
The RT-21 manual contains separate pages detailing the setup, hookup and calibration of 14 of the most common rotators in use. Additional resources are available from Green Heron in the form of applications notes, that detail less common or custom requirements. In addition, we have developed experience and have documentation on many older rotators and custom requirements.
Common Rotators Supported and Documented in the Manual:
- Hy-gain HAM series, T2X and HDR-300
- Create RC5 series
- Yaesu All models
- Orion 2800 and 2300 models
- TIC RingRotor
- Prosistel
- Alfa-Spid
- Alliance HD-73
- Rotor Doctor (CATS)
- Diawa MR-750/MR-300
Features
RPU-90/180VDC Features:
- PWM speed control for 90VDC motors up to 1 HP, 180VDC motors up to 2 HP
- Fail-Safe design (similar to all RT-21) prevent run-away even with component/system failures
- Provisions for primary relay lockout using limit switches
- Aluminum plate/heat sink can be wall mounted or mounted inside equipment shelter
- Standard enclosure includes industrial water-tight cable feedthoughs
- Can be mounted anywhere between the controller and the rotator
- Small guage 6 conductor cable is all that is required between controller and RPU (CAT 5)
- Requires RT-21r or standard RT-21 for controller, all features of the controller are maintained
Specifications
RPU-90/180VDC Specifications:
Size/Weight
- Approx 14” x 12” x 6” HWD w/enclosure
- Approx 20 lb – Shipping = 22 lb w/enclosure
Input Power
- 115/230 VAC 50/60 Hz recommend 15A circuit minimum
- Barrier Strip for customer supplied power connections
Motor Power
- 90 VDC up to 1 HP (115VAC Mains)
- 180 VDC up to 2 HP (230VAC Mains)
Protection
- Input fuses (3AG)
- Protective Transorbs on Control Leads
- Fail-Safe Input Relay
- Motor output current limit and shutdown adjusments
Connections
- Motor – Barrier Strip
- Control – Phoenix Wire Connections
- Enclosure includes three watertight cable entrances
Warranty
- Limited warranty, 1 Year parts and labor
Documentation
